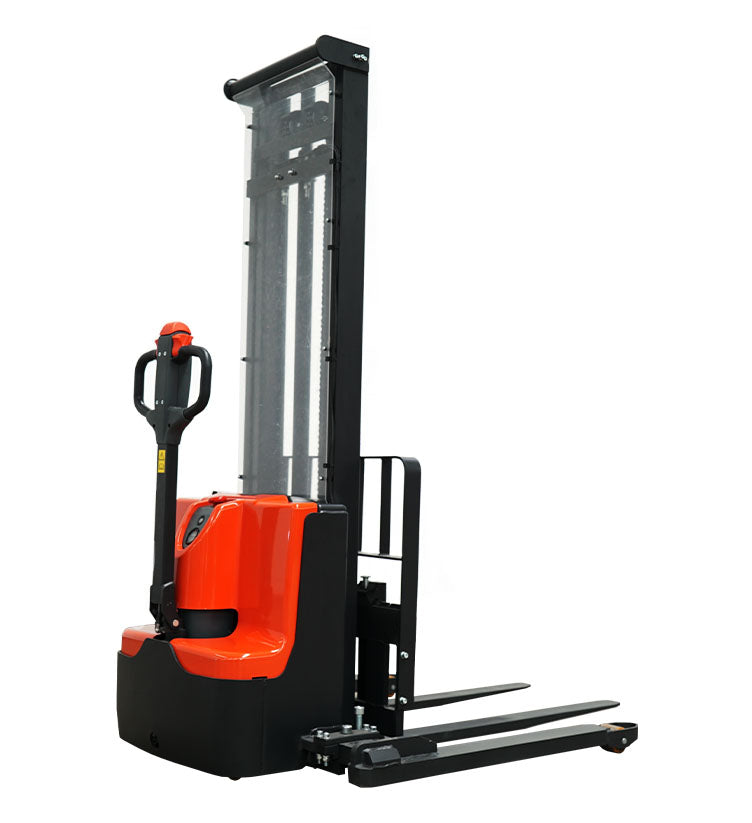

PSE10 TSL -- Capacity: 2200LBS
American Curtis Controller
24 volt DC drive motor
Integral 2x12V/ 85Ah maintenance-free batteries
Built-in 24V/10A 110V charger standard
Battery indicator
Operator protection Plexiglass
Adjustable base legs I.D. 38.2” to 50”, O.D. 46.2” to 58”
Fork size: 42”L x 11~31.5”W
8.7" x 2.8" polyurethane drive tire
3.1" x 3.7" polyurethane load wheels
Emergency power disconnect
Ergonomic control handle with horn button and belly button
Dual butterfly-style thumb controls with Curtis throttle
Key switch limits access to approved personnel
Travel speed: 2.8mph (unloaded), 2.7mph (fully loaded)
Load Back Rest
Stability casters standard
1-year warranty.
Product Dimensions
Model -- Lift Height -- LMH
PSE10TSL-114 -- 114" -- 76.2"
PSE10TSL-126 -- 126" -- 82"
PSE10TSL-137 -- 137" -- 88"
